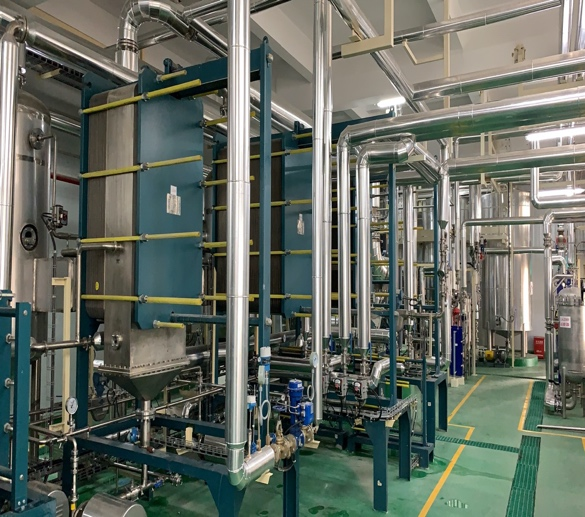

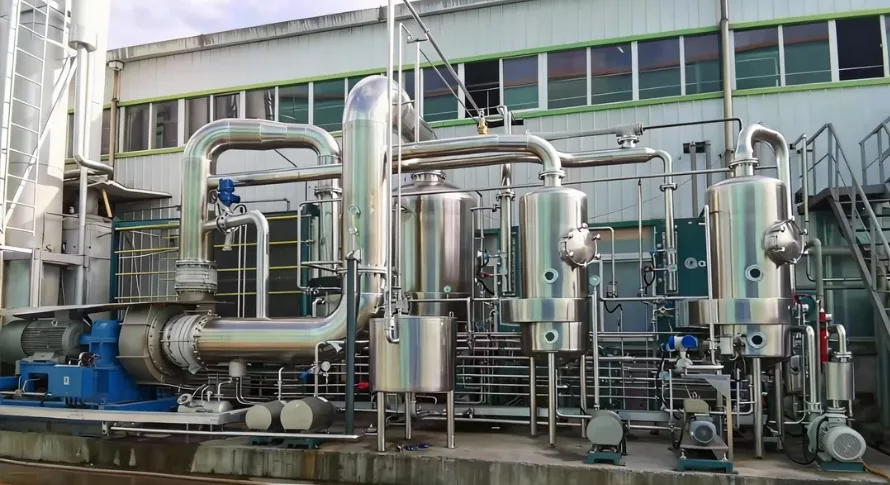

MVR+TVR plate evaporation complete set equipment

Evaporation capacity: 5T/H

Evaporation process: MVR+TVR plate evaporation complete set equipment

Material: Mannitol

Concentration:45%

Main material: 316L

Inquire

Working principle
Product Overview
FAQ

Working principle

The equipment consists of a plate evaporator, an MVR compressor, a TVR injector and an intelligent control system.

Plate evaporation section
The mannitol solution is rapidly heated through a plate heat exchanger, forming a thin liquid film in the evaporation chamber for evaporation. It features high heat transfer efficiency and short residence time.
MVR thermal energy recovery
The secondary steam generated is compressed, heated and pressurized by the MVR and then returns to the evaporator as the main heating source, forming a closed-loop circulation.
Tvr-assisted efficiency enhancement
TVR uses a small amount of fresh steam to introduce secondary steam, improving the steam grade and system thermal efficiency, and maintaining stable evaporation when the load fluctuates.
Continuous concentration and discharge
The material concentration gradually increases and automatically stabilizes the discharge after reaching the set value of 45%.
The combined design of MVR and TVR makes the system not only energy-efficient and steam-saving, but also more flexible and adaptable in operation

Product Overview

The MVR+TVR plate evaporation complete set equipment combines the dual energy-saving advantages of mechanical vapor recompression (MVR) and thermal vapor recompression (TVR), and is equipped with a high-efficiency plate evaporator to achieve continuous low-energy consumption concentration production with a stable evaporation capacity of 5T/H.

The system is optimized and designed in accordance with the process characteristics of Mannitol solution, which can stably concentrate the material to the target range of 45%, while ensuring the purity, color and process consistency of the product.

All parts in contact with materials are made of 316L stainless steel, which features excellent corrosion resistance and hygiene performance. It is suitable for high-standard industries such as pharmaceuticals, food, and fine chemicals.

Key Features & Benefits

1. Dual energy-saving structure, lower operating cost

2. Plate evaporator: Highly efficient, compact and easy to maintain

3. Specifically optimized for mannitol concentration

4. Made of 316L material, it meets high hygiene and corrosion resistance requirements

5. Fully automatic control, convenient operation

FAQ

What materials is this set of equipment suitable for?
+

Designed specifically for low-energy concentration of mannitol, sugar alcohol solutions and other high-value solutions.
What is the standard evaporation capacity? Can it be customized?
+

The standard evaporation capacity is 5 tons per hour, and higher or lower specifications can be flexibly customized according to production capacity requirements.
Why adopt the MVR+TVR combination?
+

MVR recovers the thermal energy of secondary steam, while TVR further enhances the steam grade. The overall energy-saving effect is significant, and the operating cost is lower.
Can the system stably reach a concentration of 45%?
+

Sure. The equipment is optimized for mannitol working conditions, with precise concentration control and the finished product remaining stable at 45% or adjusted as needed.
What are the advantages of plate evaporators?
+

It features high heat transfer efficiency, more compact equipment, quick start-up and short residence time, making it particularly suitable for the concentration of mannitol that is sensitive to quality.
