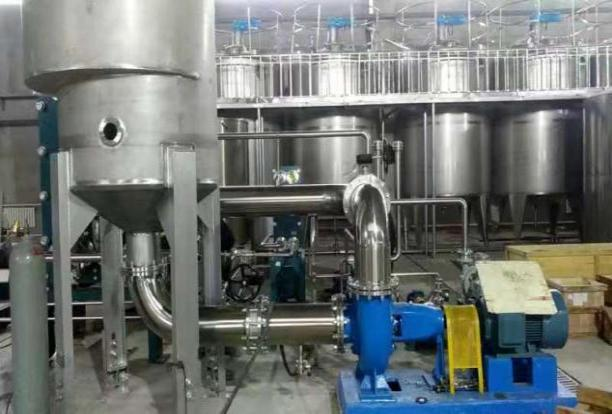

MVR single-effect plate evaporation system

Evaporation capacity: 3T/H

Evaporation process: MVR single-effect plate evaporation system

Material: Blood peptide liquid

Concentration: 41%

Main material: 316L

Inquire

Working principle
Product Overview
FAQ

Working principle

The system heats and pressurizes the secondary steam through the MVR compressor, using it as the sole heat source to return to the evaporator to heat the material and achieve evaporation and concentration.

The core process is as follows:

The blood peptide solution is rapidly heated through a plate heat exchanger
Evaporation occurs under low-temperature vacuum conditions
The secondary steam is recycled and reused by the MVR compressor
The concentrated liquid is automatically discharged when it reaches 41% of the target concentration
The plate evaporation structure features high heat transfer efficiency, short retention time and stable temperature rise, which enables the active components of blood peptides to be preserved to the greatest extent.

Product Overview

The MVR single-effect plate evaporation system is specially designed for highly active and heat-sensitive materials such as blood peptide liquid. It adopts mechanical vapor recompression (MVR) technology and an efficient plate evaporation structure, capable of achieving a stable evaporation capacity of 3T/H under low energy consumption and low-temperature conditions, and concentrating the material to 41%.

All components of the system that come into contact with materials are made of 316L stainless steel, meeting the hygiene requirements of the food, biological and pharmaceutical industries, ensuring that the product activity is not damaged, and at the same time improving the quality of the concentrated solution.

This equipment is particularly suitable for materials that are sensitive to temperature and require maintaining biological activity and nutritional components, such as blood peptide liquid, protein liquid, and biological fermentation liquid, etc.

Key Features & Benefits

1.Ultra-low energy consumption leads to a significant reduction in operating costs

2. Plate heat exchangers have high efficiency and take up more compact space

3. 316L main material, suitable for strong alkali/corrosive working conditions

4. It operates stably and is suitable for long-term continuous production

5. High degree of automation, making operation more worry-free

FAQ

Which materials is this evaporation system mainly applicable to?
+

Designed specifically for heat-sensitive and highly active materials such as blood peptide liquid, protein liquid, biological peptides, and fermentation liquid.
What is the evaporation capacity of the equipment? Can it be customized?
+

The standard evaporation capacity is 3 tons per hour. We can provide various customized models according to customer requirements.
Can the system protect the activity of blood peptides?
+

Sure. The MVR low-temperature evaporation + plate short residence time structure can effectively protect active peptides and prevent thermal degradation.
What concentration can the equipment achieve after concentration?
+

This system can stably concentrate blood peptide solution to 41% and adjust the concentration range according to the characteristics of the material.
Is this equipment energy-saving?
+

Extremely energy-efficient. MVR technology can recover the heat energy of secondary steam, and its operating cost is 70% to 90% lower than that of traditional evaporation.
